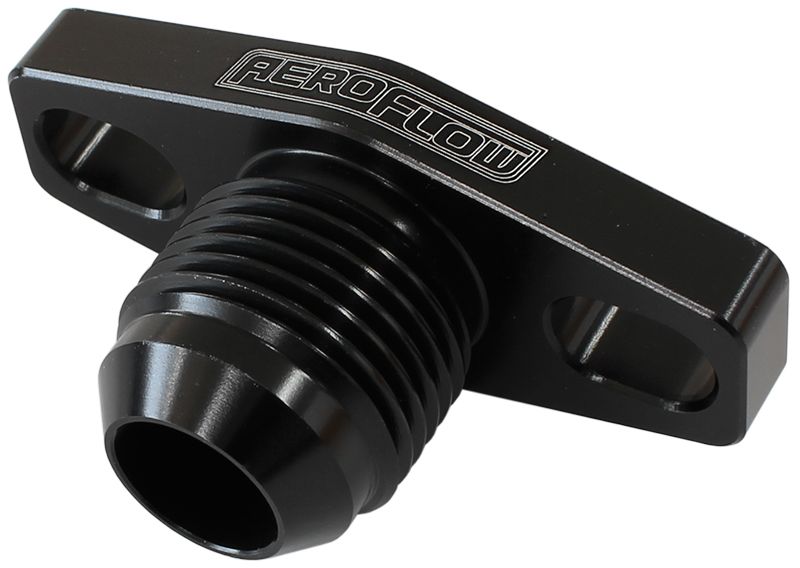

Turbo Drain Adapter
-10AN Male outlet, 38-44mm bolt centre, Black Finish

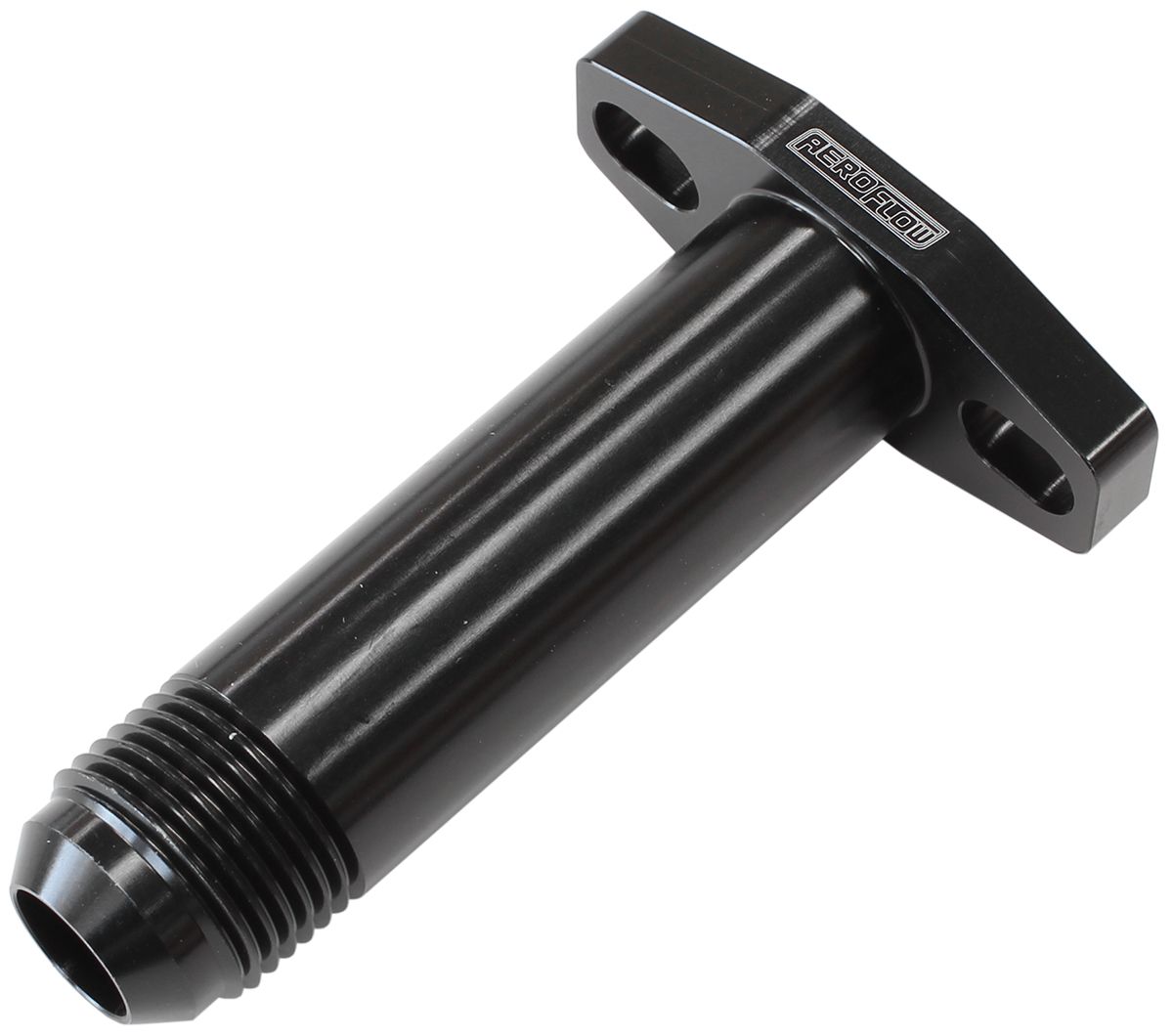

Part Number : AF463-05, AF463-05L (3" tube)
-10 ORB female with 52.4mm hole centres to suit turbos with 52.4mm bolt centres on core.
This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
