Product Code: 99-AHSG

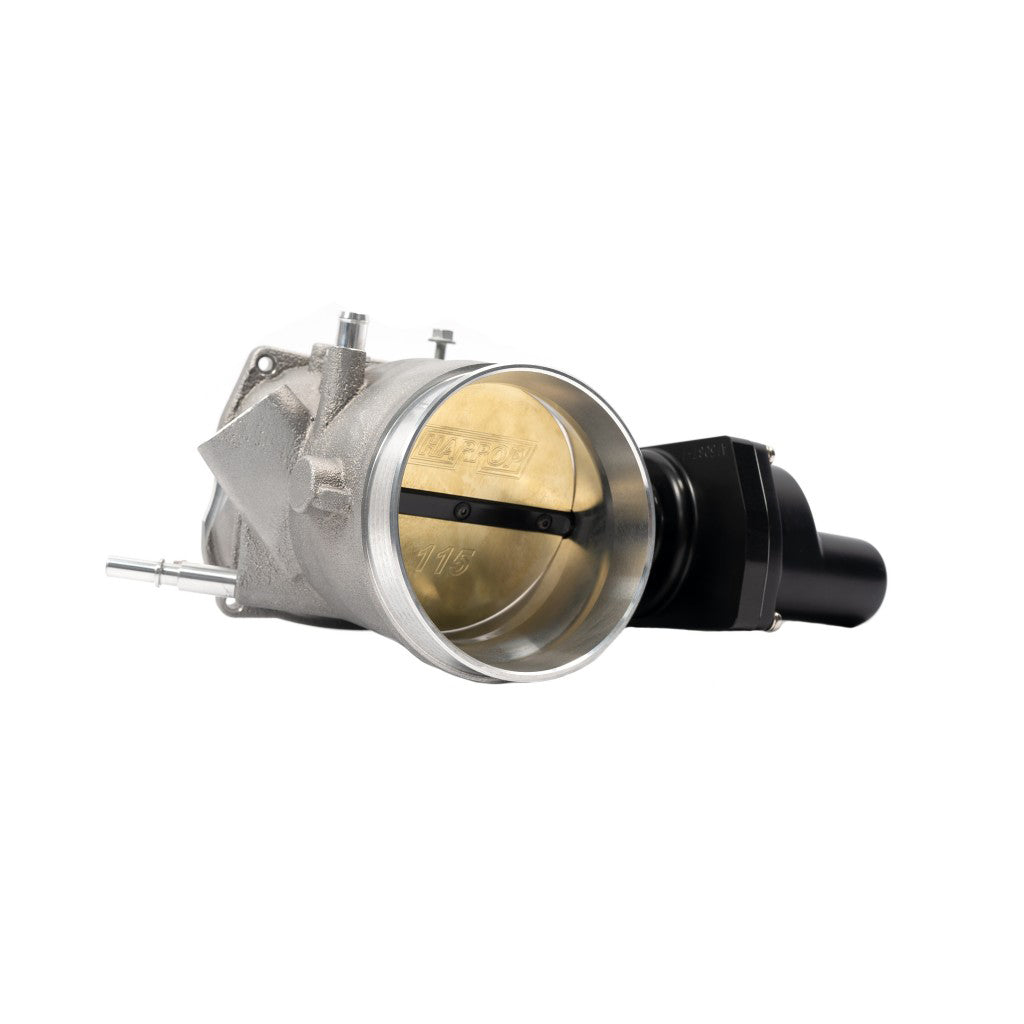

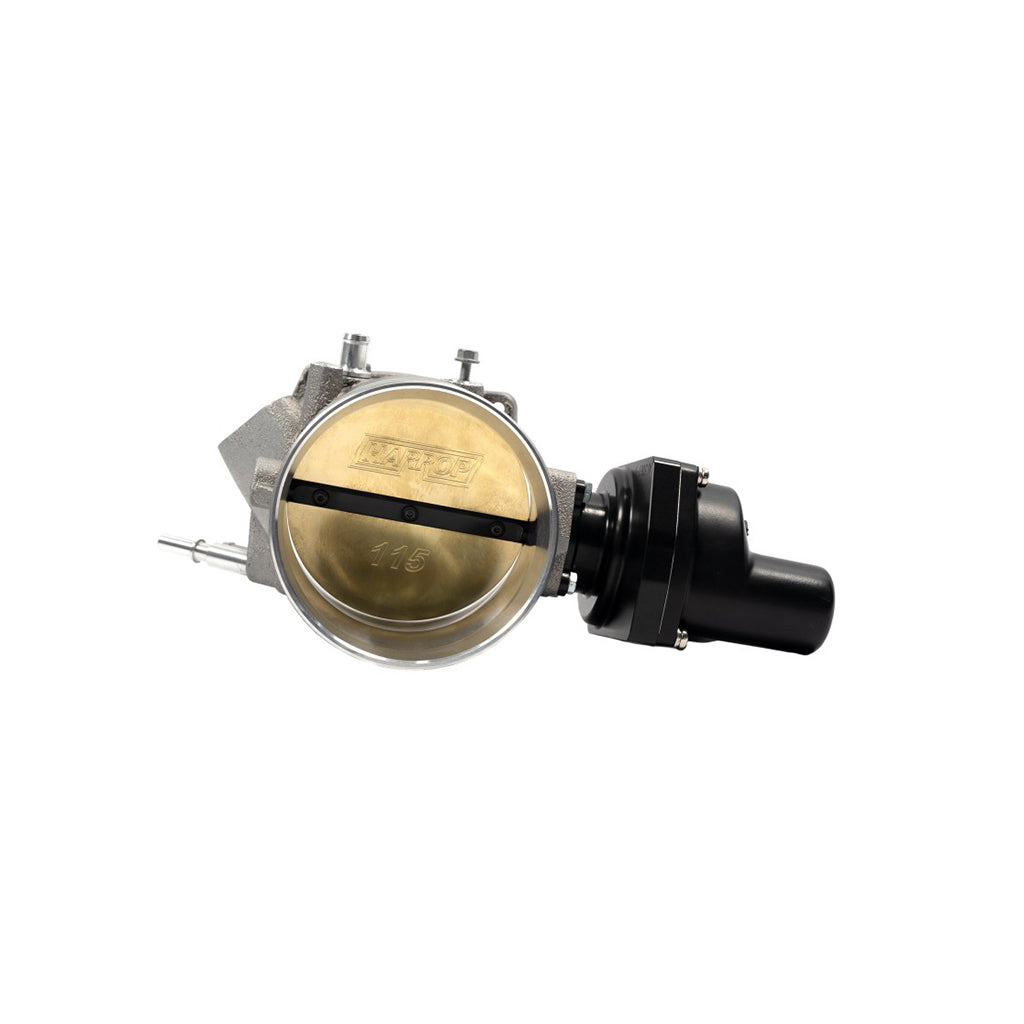

Our 115mm Integrated Throttle Body is designed specifically for our LSA-H2650i Supercharger. Ideal for max effort combinations maximising inlet airflow and performance whilst retaining factory mounting points for the MAP sensor, fuel tank purge valve, brake booster outlet and all vacuum ports.
Our 115mm Throttle Body is available in ETC and Cable drive configurations and requires a custom intake duct (5"/127mm OD) or our Carbon Edition LSA CAI.
Enquire Now
Special Order Only, Please contact our sales team to get a lead time, before ordering this item.
Overview:
- Suits Harrop LSA-H2650i Supercharger
- Designed to maximise the air flow path to the Supercharger inlet, increasing the throttle opening diameter from Ø87mm stock up to Ø115mm
- Retains all factory mounting points for LSA inlet map sensor, fuel tank purge valve, brake booster outlet and all required vacuum ports
- Custom intake duct required (5"/127mm throttle body inlet OD) or Harrop Carbon Edition LSA Cold Air Intake to suit upgraded 115mm Throttle Body
- Maximum Supercharger pulley is Ø90mm
- Available in ETC and Cable configuration - for more information please download the Tech Guide below.
- ECU Recalibration is required after installation
Variants
- 115 Throttle Body - Cable | 99-AHSG15529
- 115 Throttle Body - ETC | 99-AHSG15139
