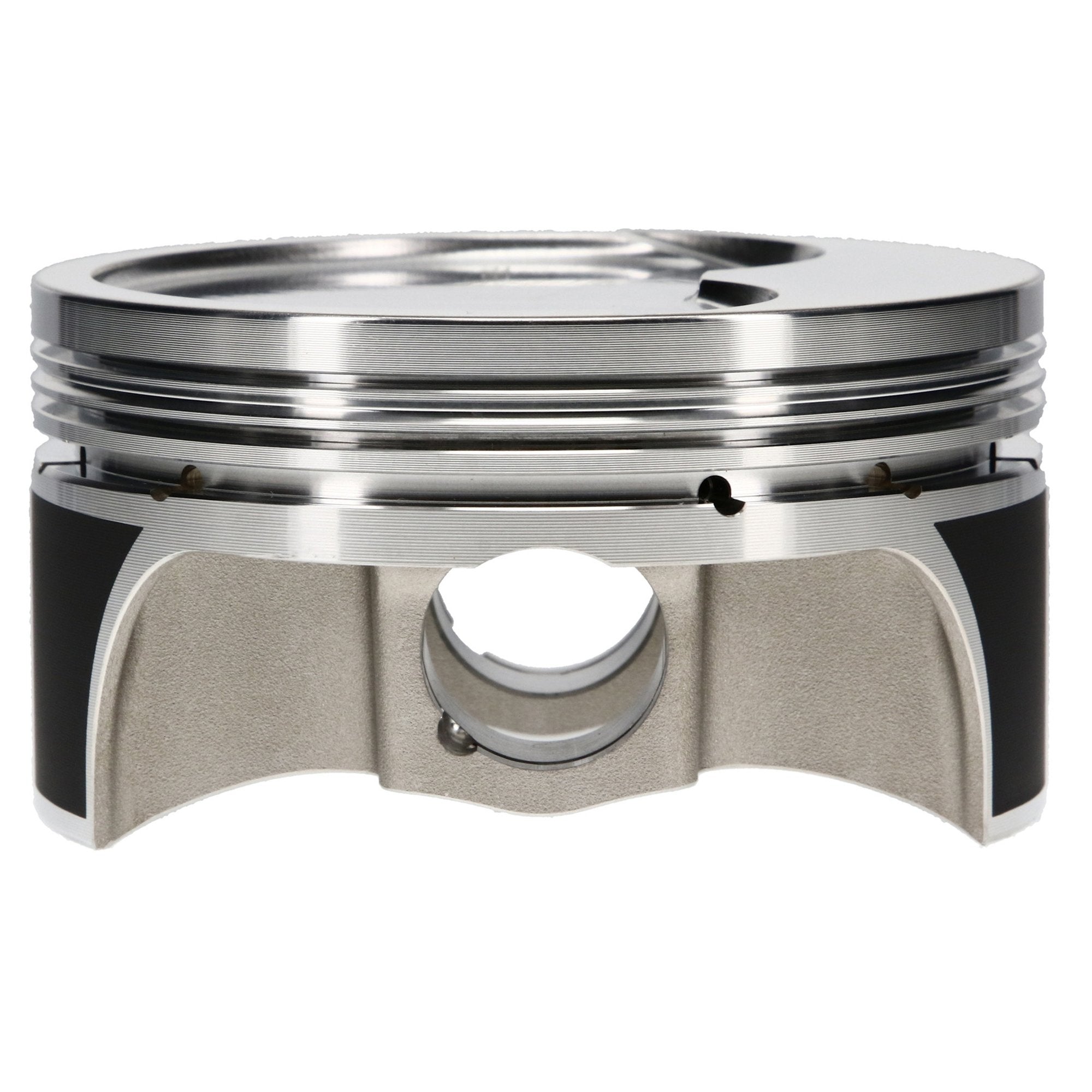

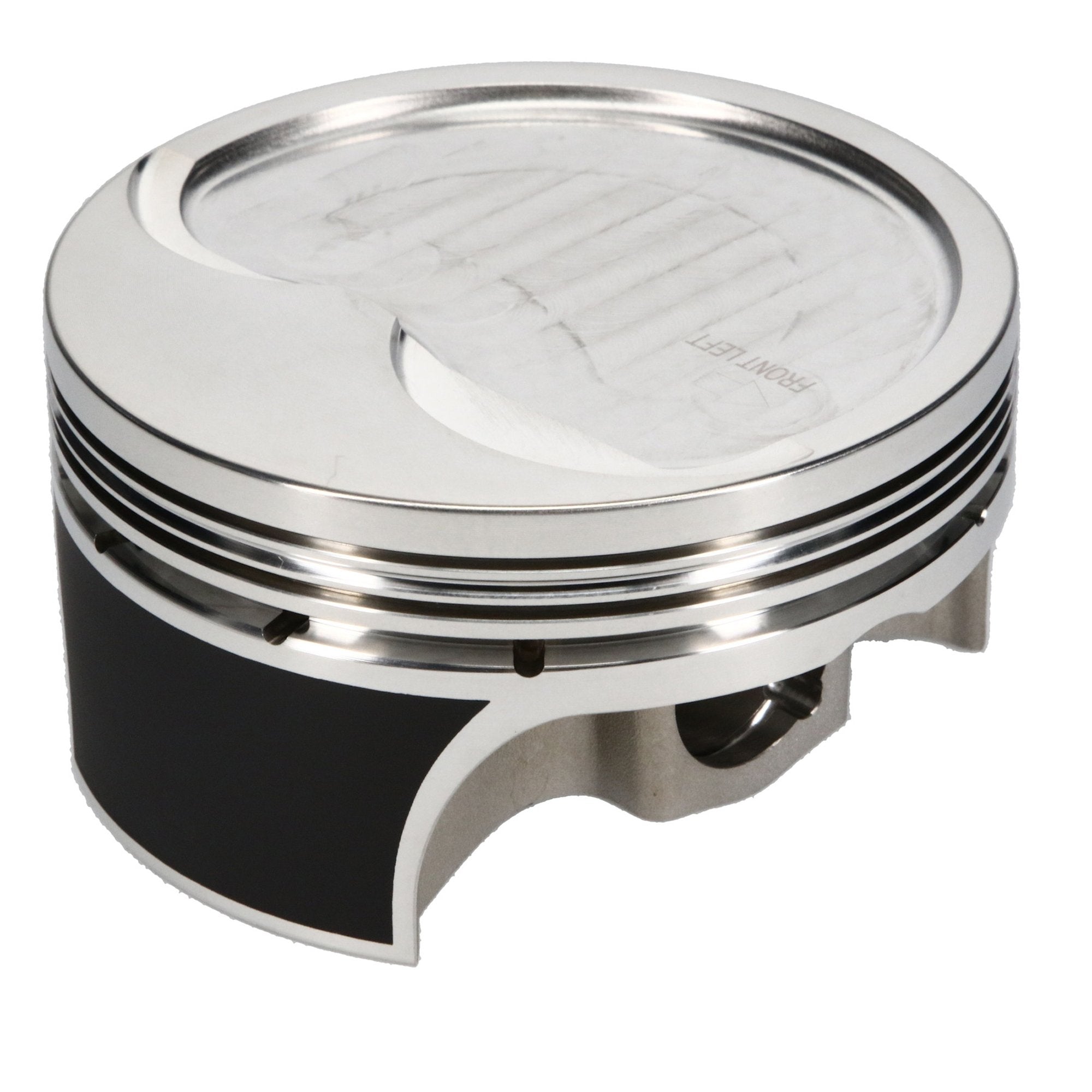

SRP Pro 2618 Chevrolet LS Gen III/IV Piston Kit – 4.010 in. Bore – 1.110 in. CH, -10.00 CC
SRP Pro 2618 Chevrolet LS Gen III/IV Piston Kit – 4.010 in. Bore – 1.110 in. CH, -10.00 CC

SRP Pro 2618 Chevrolet LS Gen III/IV Piston Kit – 4.010 in. Bore – 1.110 in. CH, -10.00 CC

Regular price
$1,998.00
Sale price
$1,998.00
Tax included.

SRP Pro 2618 Chevrolet LS Gen III/IV Piston Kit – 4.010 in. Bore – 1.110 in. CH, -10.00 CC

SKU: 361006

SRP Pro 2618, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.110 CD, Inverted Dome/Dish, 8 Cyl. Kit includes: Pistons, rings, pins, locks

404ci = 4.010" bore x 4.000" stroke x 6.125" rod

366ci = 4.010" bore x 3.622" stroke (standard) x 6.300" rod

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminium material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximise value, whether you’re building rowdy small block or a flame-spitting big block. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 2618 aluminium, yielding high tensile strength needed for high-demand performance applications
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Ring groove design placement proven to maintain positive seal in high-HP, boosted applications, along with stout top land thickness for improved strength
  • Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA

Notice: Product Images may differ from the actual product. Image may be a representation of this item.

Product Type

Engine Piston Kit

Piston Series

SRP Pro 2618

Cylinder Head

LSX/L92 12 DEG

Bore Diameter

4.010 IN

Piston Head Type

Dish

Compression Height

1.110 IN

Piston Volume

-10.00 CC

Piston Material

2618

Forging Type

FSR

Piston Average Weight

420 GR

Ring Set Included

Yes

Top Compression Ring Thickness

0.0480 IN

Second Compression Ring Thickness

0.0600 IN

Oil Ring Thickness

0.149 IN

Wrist Pin Material

5115 Low Carbon Steel, Case Hardened

Wrist Pin Length

2.250 IN

Wrist Pin Wall Thickness

0.170 IN

Product Market

Domestic



361006 + CSA6300DS2A2AH
