Turning any temperature into freezing cold winter!
- Race Track Safe
- Improves fuel consumption
- No condensation leaks
- Gain back ignition timing Once your intercooler fluid passes through the chiller is is supercooled to below freezing temperatures which then lowers your intake temps of your water to air intercooler system of a supercharger or turbocharger.
- Below ambient intake air temps
- Stealthy Installation
- No performance loss of cabin AC
- Patent Pending Design
- Dyno and race track proven HP gains
- Entire System Warranty
- Protects engine from pre ignition

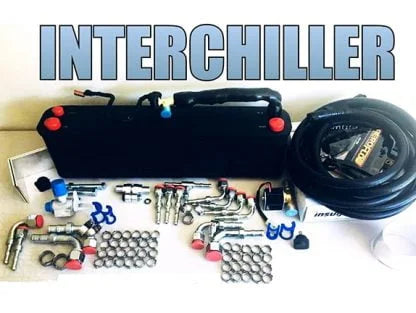

- The Interchiller system includes every nut and bolt you will require we even include highly detailed step by step photo and Video instructions.
*Photo for illustration purposes only
Yes this is condensation that has turned into ice on the intercooler fluid lines of a Magnuson Heartbeat supercharger.
FI Interchillers
What is a Forced Induction Interchiller?
In simple terms we are T-piecing into the cars AC system and splitting the refrigerant 50/50 between your cabin and chiller. We also install a solenoid on to the line going to the cabin so you have 2 modes of operation:
- Cabin and chiller
- Chiller only (Race mode)
Race mode is race track safe as no condensation will leak from the cars cabin evaporator.
Our interchiller core is a patented design, one of the many reasons we are able to get so cold and also have ZERO impact on cabin AC performance.
Your intercooler fluid will pass through one side of the chiller core exchanging it’s temperature with the cars refrigerant, which then results in freezing cold intake temps as the intercooler fluid gets colder and colder.
Once your intercooler fluid passes through the chiller it is supercooled to below freezing temperatures which then lowers your intake temps of your water to air intercooler system of a supercharger or turbocharger.
Our interchiller can be fitted to any car or truck as long as the car has a water to air intercooler system (supercharger or turbo charger) and an AC system. It also has no limitation to HP, it can deal with it, so far the biggest build we have been involved with has made 2400HP.
We are able to hot lap the cars at the track back to back with the same consistency every run, by the time you collect your time slip you are back to your minimum intake air temp and ready to go again.
DRAG RACING
The interchiller is especially useful in drag racing, typically you would perform your burnout and then stage your car, in these circumstances your intake temps are now very high and are only going to get higher as the car has no air flow for cooling, it’s at this point the chiller changes everything. It is not uncommon to have an intake temp after your burnout of 10c (50f) or less on a 30c (86f) day. We have crossed the finish line with intake temps in the low 40’s c (100f) compared to normally crossing at 80-90c (176-194f) on the LSA blower this is a lot of HP being gained!
HOSE AND FITTINGS
We refuse to use cheap and nasty AC fittings, they have built is issues along with long and short term problems. The hoses and fittings that we use are tested to SAE J2064 standards, and they actually exceed those standards. The burst pressure on them is 2500psi, this is impossible for your AC system to achieve, thus it will never burst. As shown in the picture below, with regular crimp style hoses they are often plagued with the issue of trapping air and PAG oil in the crimp, which over time turns acidicWith the clamp system we use this never happens and you actually have a much stronger bite of the hose into the bite sections of the fittings, for a system that will last many years to come.The fittings we use have a tensile strength on the weakest part (the radius) of 1600kg/3527lbs
The manufacturer we buy the hoses and fittings from warranties them as long as we use their hoses, clamps and fittings. As such we warranty the entire system, this shows how confident they are in their product that it will not fail and should it fail which is highly unlikely it will be replaced. During SAE J2064 testing of the hose/fittings when it fails the part that fails is the actual hose bursting open at 2500psi ! The fittings and clamps remain intact still holding the hose to the fitting...only the hose is bursting open. This shows how strong the clamping system is and the bite force being applied to the hose/fitting. This is much stronger than regular crimping which is why the manufacturer is able to warranty their product. Its a case of buying the best possible AC hose/fittings that is the most versatile, flexible to out needs and of a very high quality.
CNC Fittings All of our fittings are custom made on our CNC to look and function with an OEM standard. They are pressure tested before being sent out, so they will not leak when installed correctly.
COMPETITION SOLENOID
The comp solenoid allows you to run the AC system in 2 modes:
- Cabin and Chiller
- Chiller only (race track safe)
In chiller only mode you are able to get colder intake temps and you will pass tech inspection at your race track as condensation is then unable to form on the cabin evaporator and you are then allowed to use the AC system on the track, as long as your intercooler lines are also insulated to not drip condensation. The solenoid is controlled by a simple ON/OFF switch inside the cabin.
