MoTeC 15 Button Keypad – 3 x 5 Horizontal (41400)

$685.00 AUD

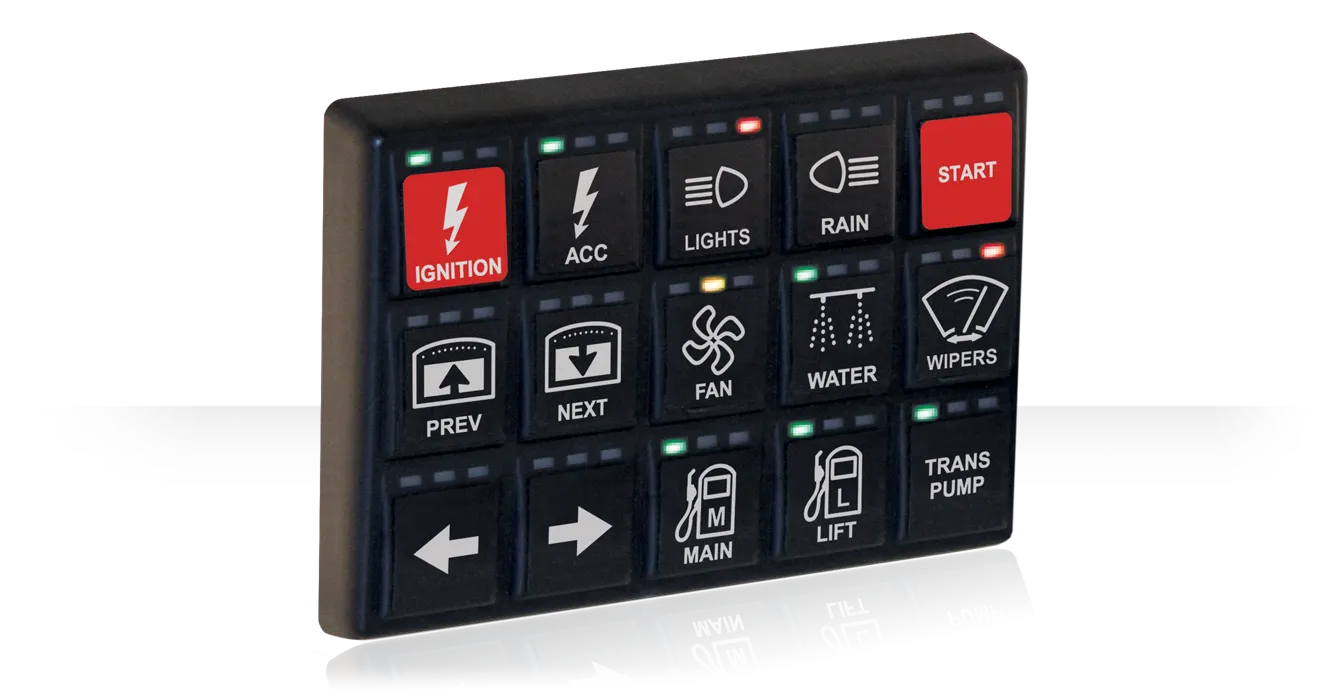

MoTeC 15 Button Keypad – 3 x 5 Horizontal (41400)

Name: MoTeC 15 Button Keypad – 3 x 5 Horizontal (41400)
Brand: Motec
SKU: 41400
Price: 685.00 AUD
Availability: InStock

$685.00 AUD

MoTeC's multi-button backlit CAN Keypads provide a switching solution that can be customised and connected to any MoTeC PDM.

The buttons can be used as inputs to control the PDM and other devices in the vehicle. The three LED lights along the top of each button can be used to indicate the state of the devices.

Four separate Keypads, each with up to 15 keys, can be combined on a single CAN bus and controlled by the same PDM (factory configuration required).

Features

Small, lightweight and compact package
Rugged design – vibration, and impact resistant for use in extreme environments
Dust and water resistant - sealed to IP67
Dimmable LED indicators above each button for real-time feedback
Backlit buttons
Pre-designed semi-transparent labels supplied
Supports multiple key press combinations
Simplified wiring - only 4 wires required for multiple buttons
Short circuit and reverse polarity protection

Specifications

Configuration

All configuration is done via PDM Manager software:
- CAN addressing, function, backlight brightness, status LEDs etc.

Communications

Single CAN bus

Capacity on CAN Bus

Up to 4 Keypads, with up to fifteen keys each

Advise your dealer if multiple Keypads are required on the same CAN bus. Use of multiple Keypads will require the units to be pre-configured before supply.

LED Status Lights

Colours: green, orange, red

Power

Operating voltage: 8 to 32 V DC
Operating current: 0.2 A maximum
Reverse battery protection
Short circuit protection

Ambient Operating Temperature

-40 °C to 85 °C

Physical

1 x 4 pin Deutsch DT connector
Size (without connector): 129.54 x 89.46 x 15.74 mm
Weight: 175 g

Pinout

Mating Connector: MoTeC #68064

Pin	Function	Pin	Function
1	Power	3	CAN-Hi
2	Ground	4	CAN-Lo

Mating Connector: MoTeC #68064

Pin	Function	Pin	Function
1	Power	3	CAN-Hi
2	Ground	4	CAN-Lo

Wiring

The Keypad has a male 4 pin Deutsch DT connector moulded into the back of it. The corresponding female connector should be wired as follows.

Power Wiring

The Keypad will continuously send CAN messages to the PDM, which will prevent the PDM from entering standby mode. There are two methods for wiring the supply to the Keypad.

For vehicles with a battery isolation switch, configure the PDM to always power the Keypad. This will allow the Keypad buttons to be used for master start up functions, but the PDM will never enter standby mode.
To minimise battery drain when the vehicle is not being used for extended periods, the battery isolation switch needs to be turned off.
Wire a master switch or ignition key into a PDM input and configure the PDM to turn off all the outputs (including the Keypad) when the switch or key are turned off. This will allow the PDM to enter standby mode, minimising battery drain.
