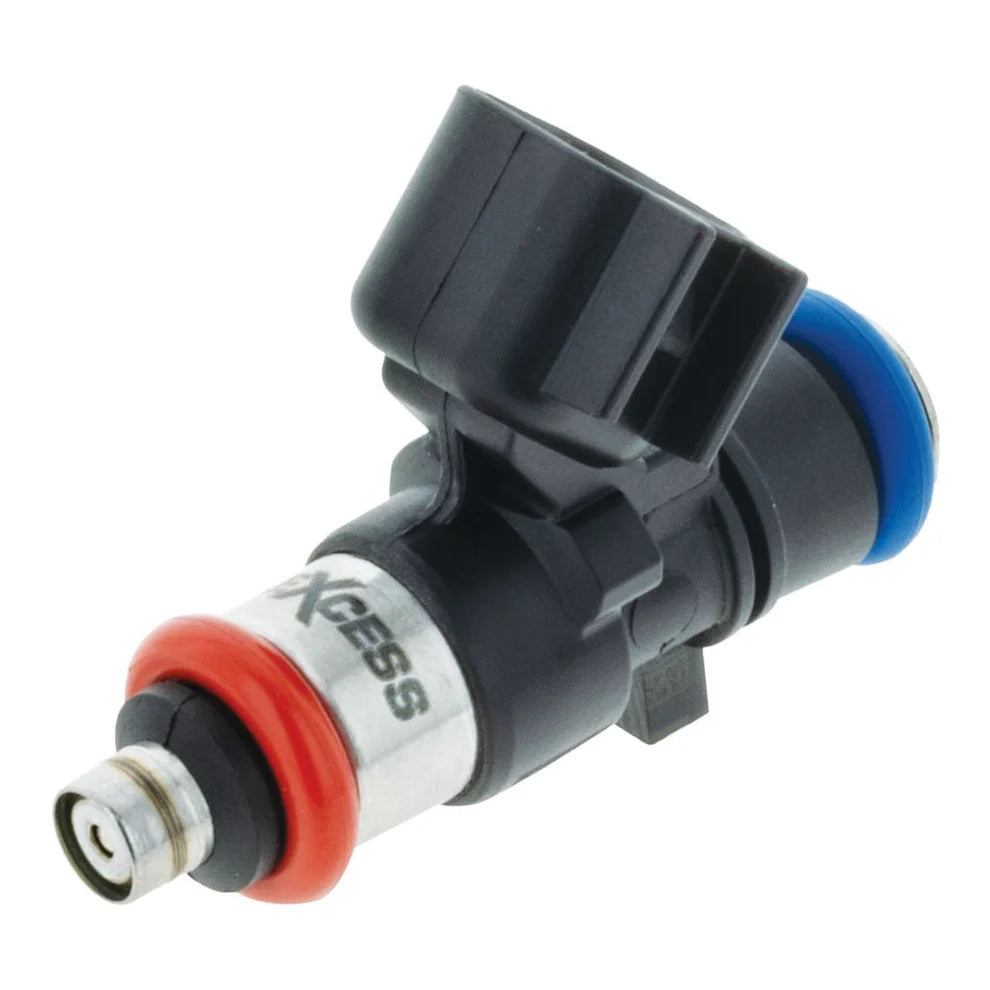

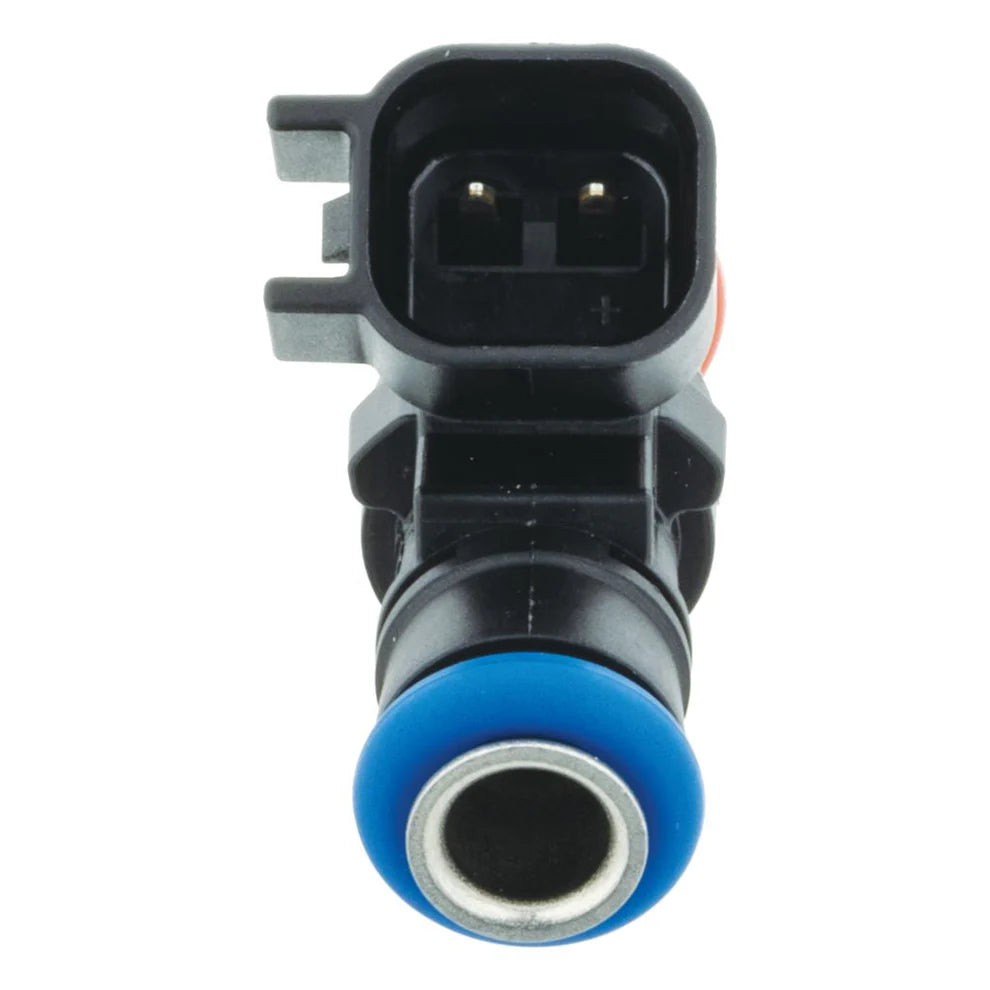

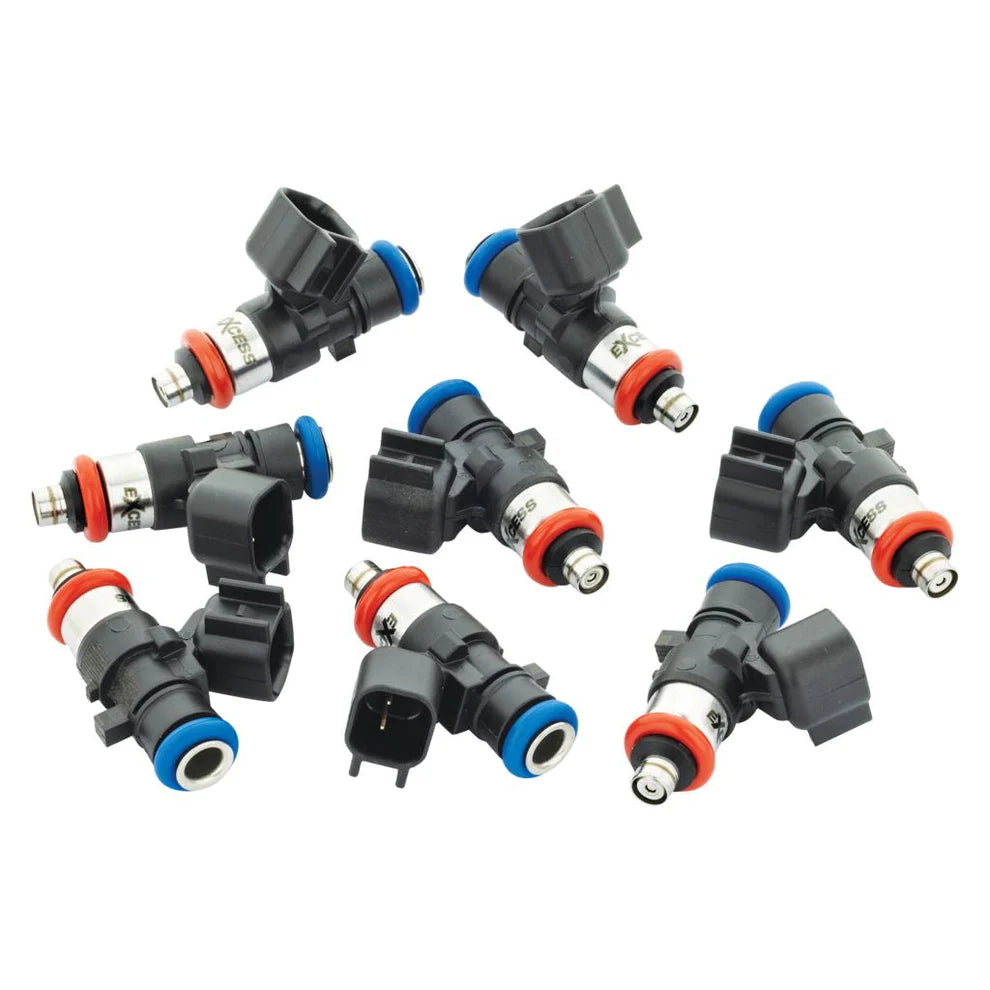

Excess 1500cc E85 / Methanol Fuel Injector Kit, Suit Commodore VZ-VF LS2 6.0, LS3 6.2 (V8)

X1500U8A

The Excess Injectors (1500cc @ 3bar) is a set of 8 high-performance fuel injectors designed for GM Holden LS V8 engines (6.0L/6.2L) and compatible with E85/methanol. These injectors feature USCAR connectors, stainless steel internals, and include specific "eXact Match Data" for tuning

• Fuel Compatibility: All Fuel - stainless steel internals

• Make: Holden

• Model: Commodore VZ-VF 6.0/6.2 (V8) LS3, LSA, LS9, L76, L77, L98 engines

• Injector CC Rating: 1500cc

• Testing Pressure (bar): 3

• Coil Resistance: 8.5 ohms

• Injector Plug Style: USCAR

• Internals: Stainless steel internals

• Injector Height (O-Ring to O-Ring): 40mm - 1.57"

• Top O-Ring Outside Diameter: 14mm - 0.55"


• Quantity: Sold as a set of 8

• O-Rings Included: Yes

• Wiring Harness Included: Not Required

• Height Extensions Included: Not Required

• Tuning Data Included: Yes - Exact Match Data

• Access to Testing Data: Yes

Why Excess?

See for yourself

Tight Testing Controls

All Excess Injectors are tested on our custom built test bench to J1832 standards.

• Pressure is electronically controlled at 3 bar
• Temperature is controlled at 21°C
• Votage is controlled at 14V

Because the testing parameters are so tightly controlled we get the same results everytime we test them.

Tightly Grouped Sets

We don't just dynamically flow test injectors we also measure the dead time of each injector. Every set is:

• Dynamically flow matched within 1%
• Deadtime matched within 2%

Exact Match Data

Every set you buy comes with tuning data exactly matched to your set. It is based on how that set performed on the test bench. Saves dyno time tuning injectors and you get a perfect result every time.

• data formatted for 11 different ECU/software types

• no two tune files are the same
• tuning data is matched exactly to your set

How many points are tested?

• over 6,500 flow points are tested and recorded on every injector.

• over 265,000 measurements for flow, pressure, voltage etc are recorded for every injector

• tuning data specific to your set is available for download to make an easy tune

All of these results are stored on our cloud server, you can log in to view the data specific to your set at any time.
