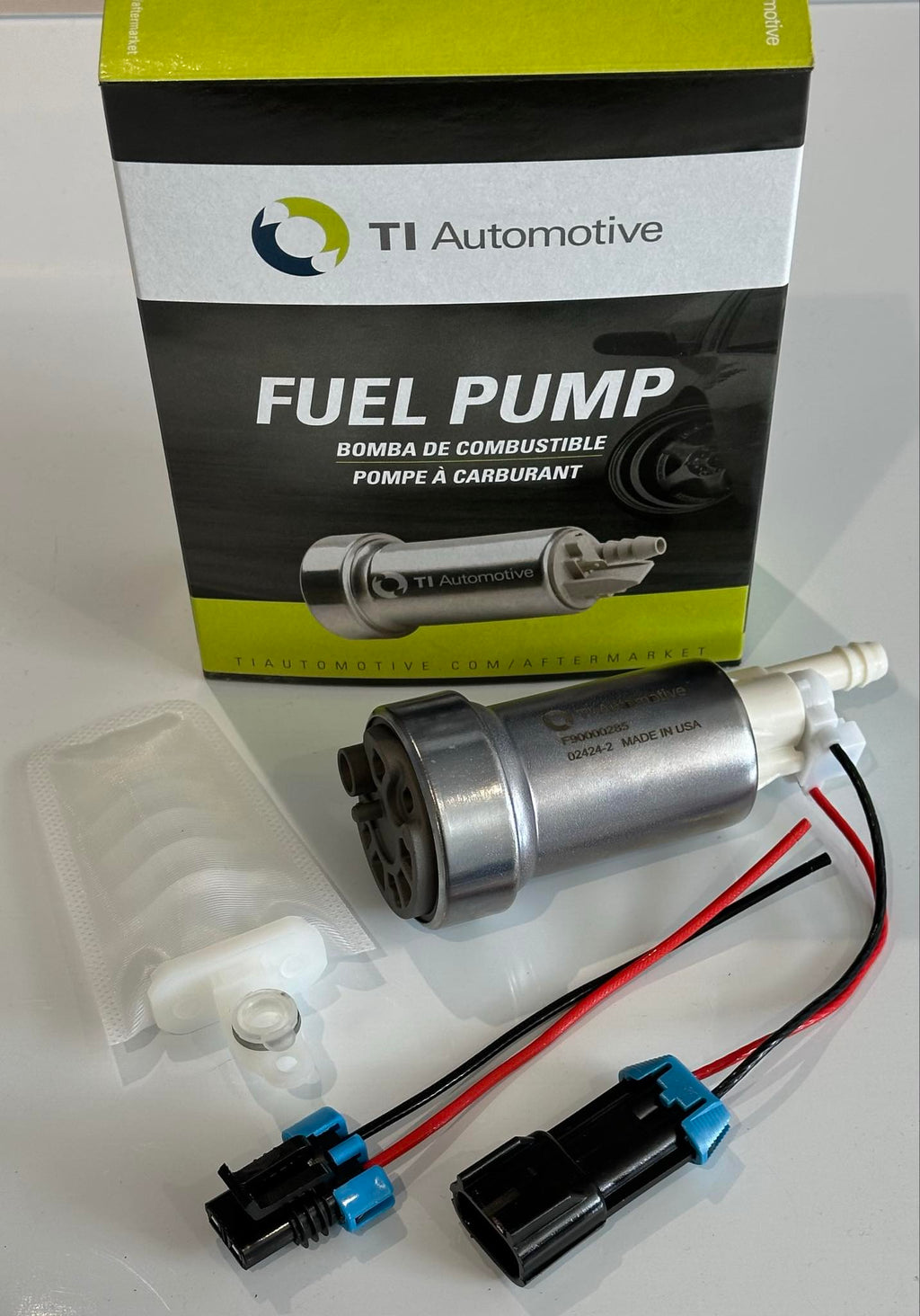

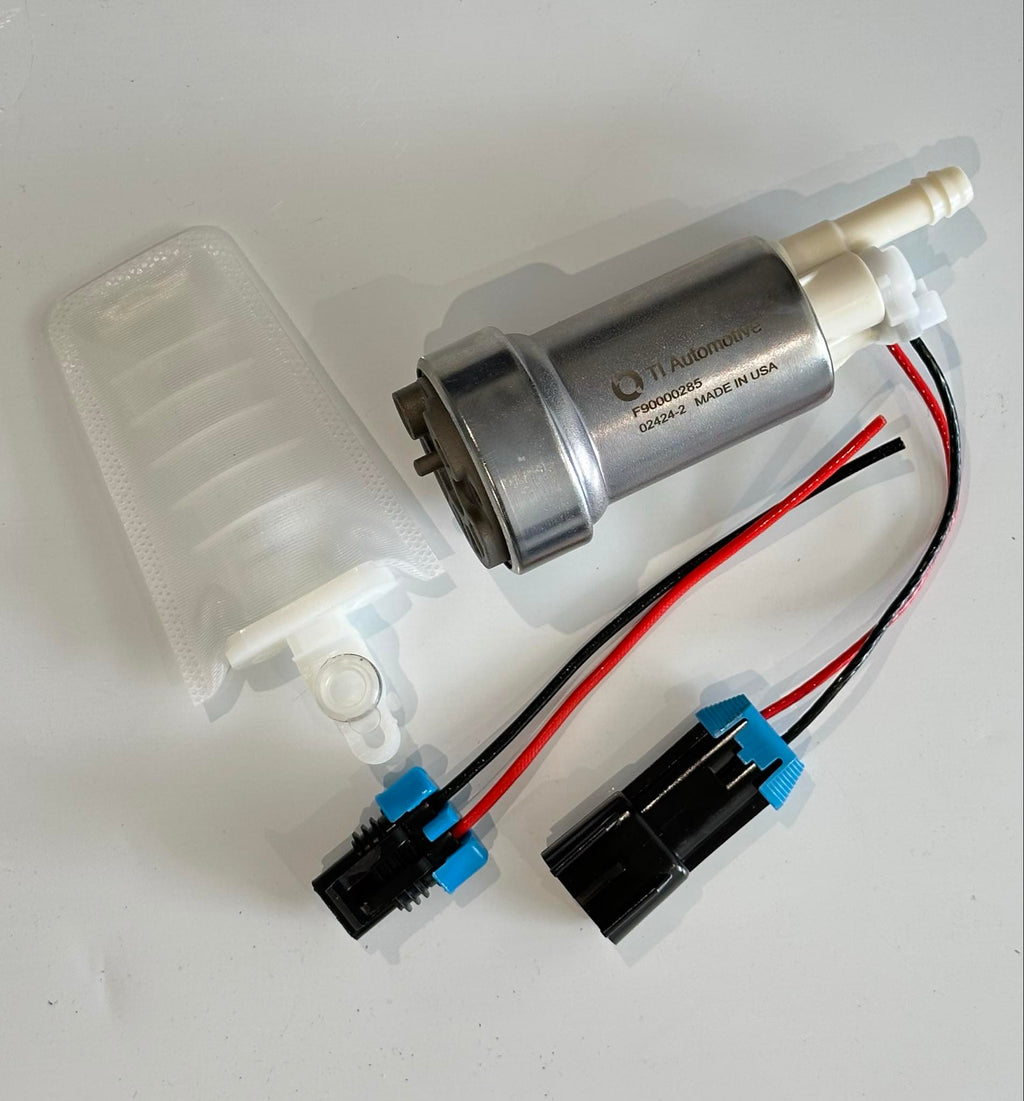

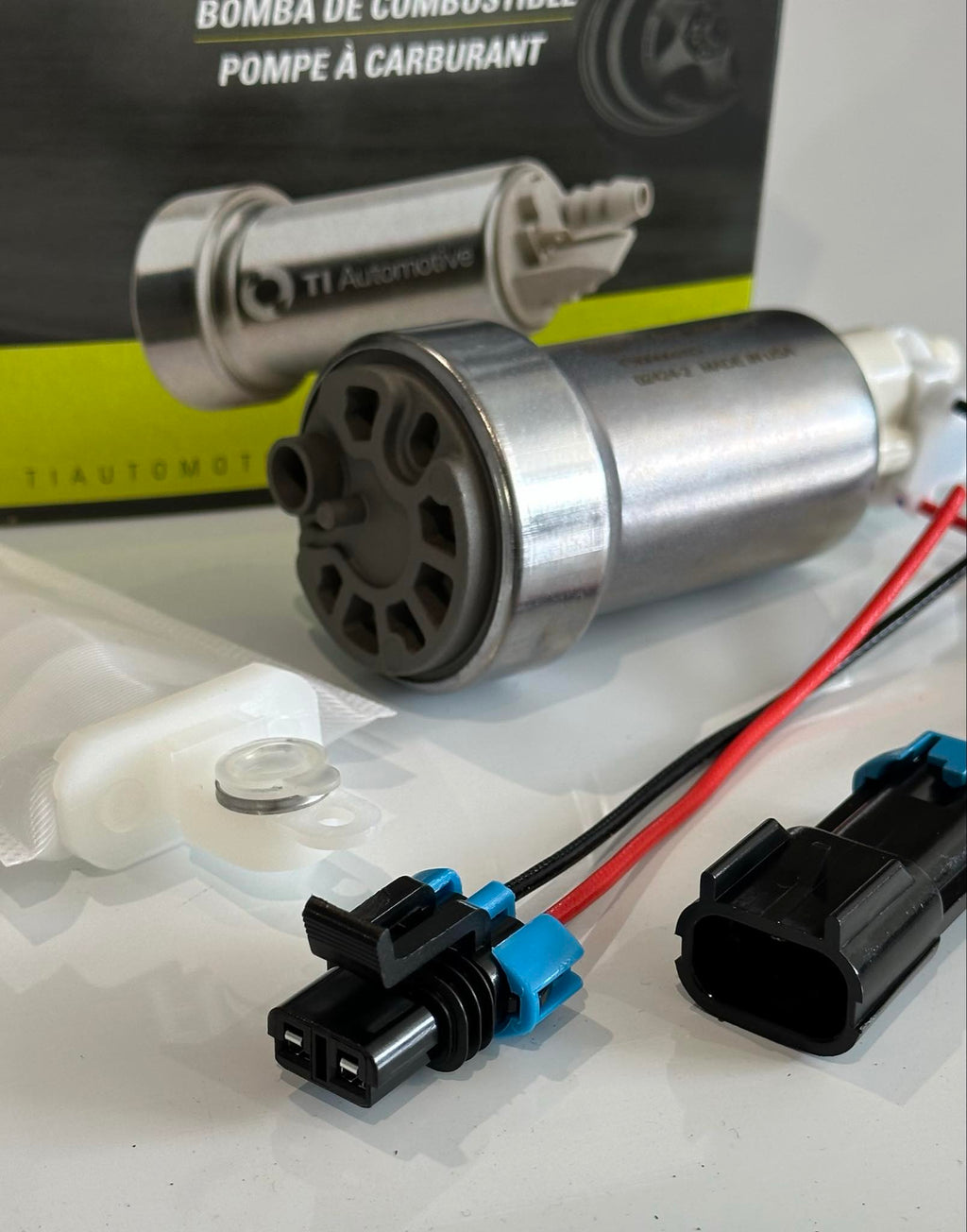

Walbro TI Automotive 525LPH EFI Fuel Pump Kit

HIGHEST OUTPUT IN-TANK FUEL PUMP ON THE MARKET
TI Automotive F90000285 39/50 Fuel Pump

Enjoy the highest output on today’s market with our new DCSS 39/50 fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance

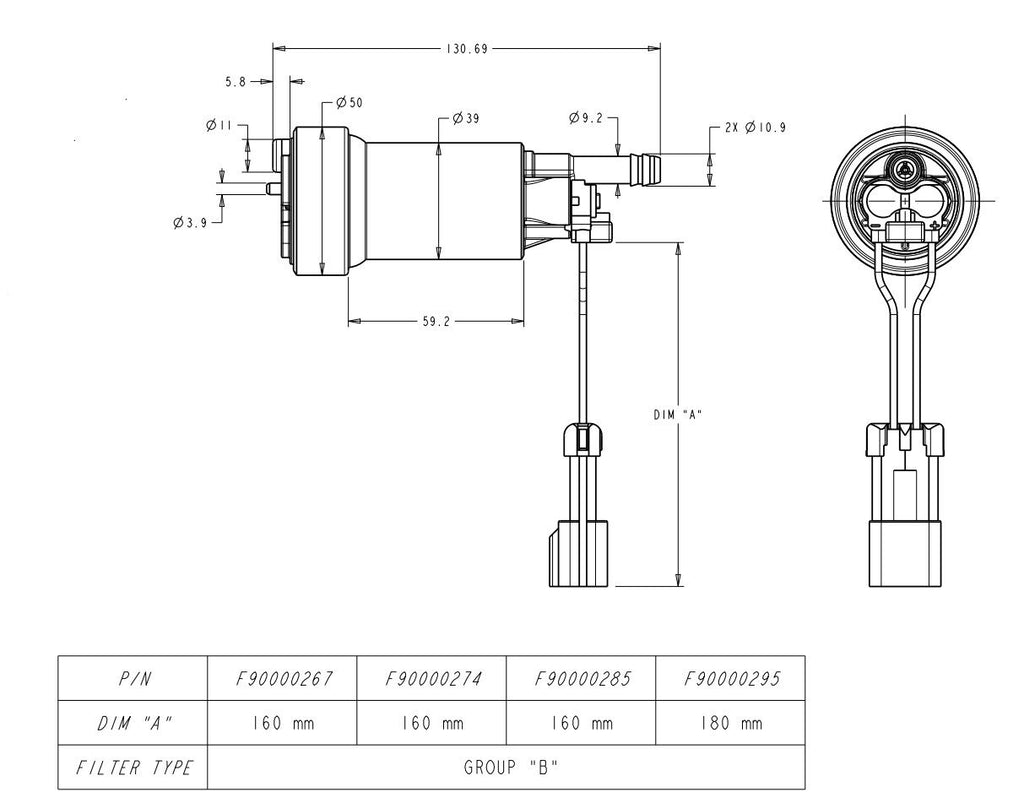

Pump Specifications:
• Pump Length: 131mm
• Main Housing Diameter: 39mm
• Lower Housing Diameter: 50mm
• Fuel Inlet Diameter: 11mm OD
• Fuel Outlet Diameter: 11mm OD

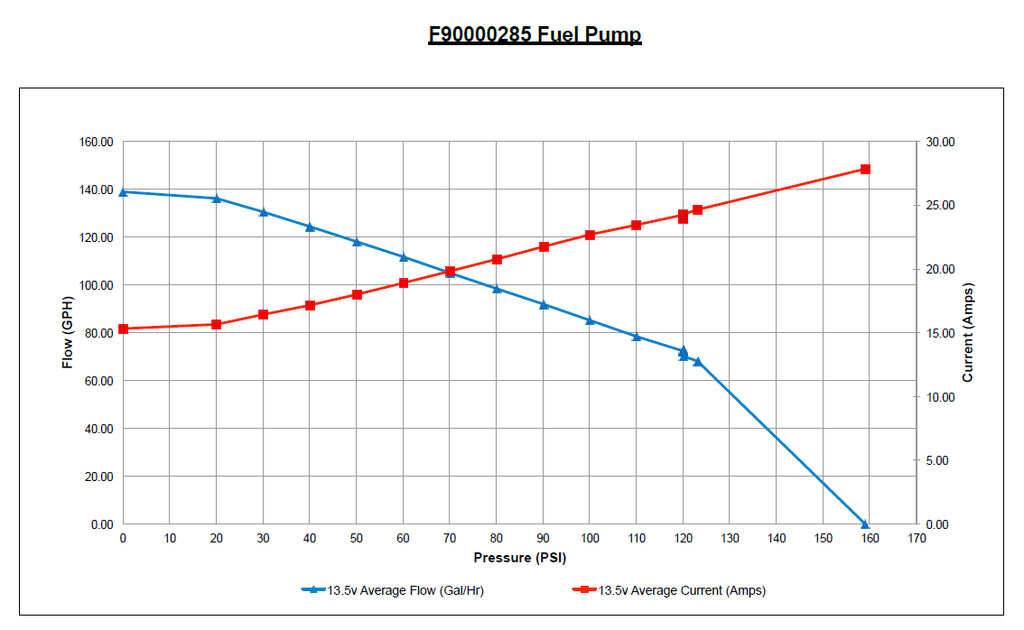

• Flow Rate: 470lph @ 40psi (120+ gph)
• Test Voltage: 13.5 Volts

F90000285 Flex Fuel HP Pump
The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 700HP.
• Highest flow in-tank brushed fuel pump offering from TI Automotive
• Featuring award winning DCSS technology
• E85 compatible
• Internal check valve — prevent fuel system pressure bleed down — avoid extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit 400-1174 (not included)

About TI Automotive
TI Automotive manufactures a complete line of fuel pumps, accessories, pump kits, and fuel modules for the high-performance aftermarket. Approximately two-thirds of the vehicles produced around the world feature TI Automotive’s products and technology. TI Automotive’s award-winning fuel delivery system technology is featured on some of the world’s highest performing production vehicles and supercars.

Walbro Automotive Fuel Pumps are now TI Automotive
For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive.
These same pumps are now branded with the TI Automotive name, carrying a legacy of
more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same
performance, quality and reliability that you have come to know and expect

0556097 is the part number for the box packaging, not the fuel pump part number inside the box. EFP-530  EFI-525E85 113-019
